PIVOT FOLD MODEL
8 ROW 70cm

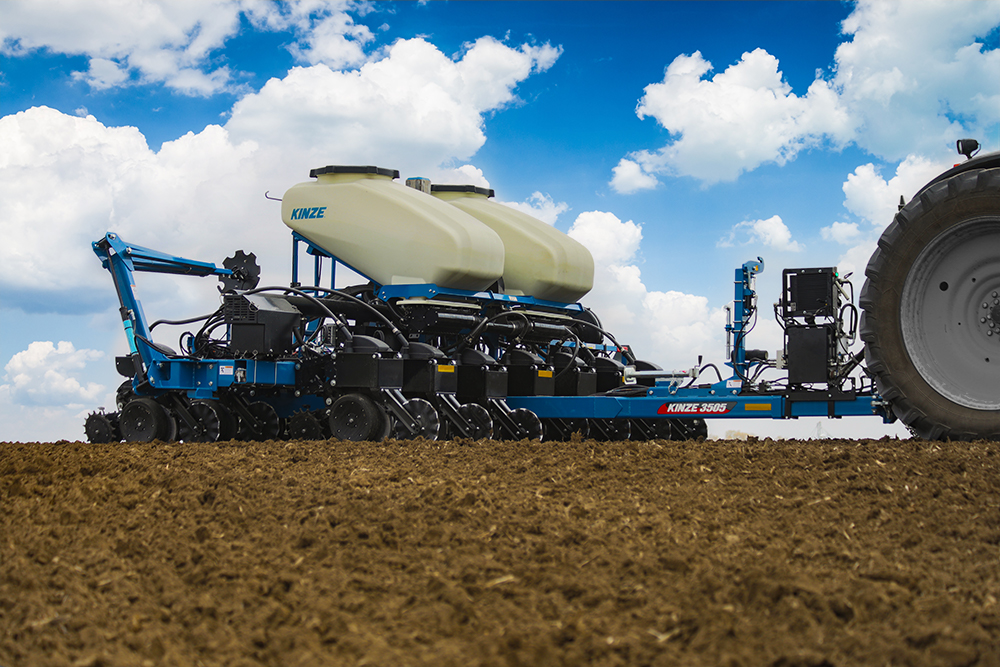

The uniquely outfitted Kinze 3505 rigid frame, pivot fold planter is available as either a small frame classic or advanced technology planter that is ideal for small farms or easily navigating smaller fields. It is easy to operate, designed for high performance, and available with optional split rows, 17.5 cm twin rows, bulk-fill hoppers, and liquid and dry fertilizer for optimum efficiency.
TRUE. BLUE. Advantage.
8 ROW 70 CM
The proven pivot fold design of the classic 3505 has planted countless acres for years. Its ground contact drive when combined with the True Rate vacuum meter is capable of speeds up to 13 km/h as field conditions allow. Finger pick-up and brush meters are also available as mechanical metering solutions for planting at 6 – 10 km/hr.
8 ROW 70 CM
The 3505 is also available performance optimized with optional high tech features, including the Blue Vantage display*, Blue Drive electric drive*, True Rate vacuum meters, True Depth hydraulic down force*, and for 2023, True Speed high speed vacuum meters*. With True Speed, accurately place seed at 5–19 km/h, benefit from increased productivity and profits, and take advantage of smaller opportunities of time to get planting done..
*only available with bulk fill seed hoppers
Key Benefits
Classic
- Plant at speeds up to 13 km/hr as field conditions allow, with the True Rate vacuum meter
- Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
- Exceptional seed handling capabilities with upgraded bulk fill entrainer—up to 11 different crops
- Improved durability, longer wear life, and lower cost of ownership from 05 Series row unit upgrades
- Efficient fertilizer application with up to 1 140 L liquid or 1 600 L dry fertilizer capacity
High Tech
- True high-performance and accurate split row planting with True Speed high speed or True Rate vacuum meters, Blue Drive electric drive, and upgraded 05 Series row units
- Simple and easy to use Blue Vantage display with Map Sync® shared coverage data and up to four planter-mounted cameras
- Consistent seed depth control from the optional True Depth hydraulic down force system
- Exceptional seed handling capabilities with upgraded bulk fill entrainer—up to 11 different crops
- Fewer stops with 1 760 L bulk fill seed hopper capacity with scale
- Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
- Improved durability, longer wear life, and lower cost of ownership from 05 Series row unit upgrades
- Efficient fertilizer application with up to 1 140 L liquid or 1 600 L dry fertilizer capacity
Features and options
Classic
- True Rate vacuum seed meter
- 05 Series row unit enhancements
- Ground contract drive
- Split rows
- Finger pick-up meter
- Brush meter 2.0
- Liquid or dry fertilizer
- Narrow transport
High tech
- True Speed high speed meter
- Blue Vantage display
- Blue Drive electric drive
- True Depth hydraulic down force
- Liquid or dry fertilizer
- 1 760 L bulk fill capacity with scale
- 05 Series row unit enhancements
- Ground contact drive
- Split rows
- Narrow transport
Blue Vantage Playlist
SIMPLE DISPLAY INTERFACE
Planting should be easy, especially when all you want to do is plant. The ability to just plant is key when you have a narrow window of opportunity to get your crops in. The Blue Vantage display offers a simple, easy-to-use user interface that communicates directly with your Kinze planter. Simply confirm the settings…and away you go!
Electric Drive System
Row-by-row control that gives you the ability to plant accurately where you need to. Precise placement equates to higher yields and maximized profitability. The Blue Drive electric drive system is designed to seamlessly integrate with the Blue Vantage display to analyze and report critical planting data and place your seed exactly where it needs to go.
TRUE planting performance from the ground up
Spend less time in the shop and more time in the field with the 05 series planter enhancements. Double the acres between service intervals with upgrades to row unit wear points for improved durability and ease of maintenance. With an enhanced seed delivery system, plant more crop types, seed sizes, and increase your speed.
Accurately Achieve Results at True Higher Speeds.
Double the acres you plant in a day! True Speed is a high speed electric drive meter that controls seed from meter to seed trench. The result is precise singulation and see spacing with various seed shapes and sizes at your speed (3-12 mph). True Speed is an easy-to-maintain system saves you time and money, resulting in lower cost of ownership.
